You Deserve a Vineyard Spreader or Orchard Spreader that’s Made to Last
What’s important to you in an Orchard & Vineyard Spreader? Is it speed? Accuracy? Or the ability to apply compost, lime, fertilizer, and all types of pelletized materials to your vineyard or orchard? No matter what your primary concern, you shouldn’t have to compromise. You can have a vineyard / orchard spreader that performs and lasts.
Get to Know the Orchard & Vineyard Spreaders from Stoltzfus Spreaders
Stoltzfus Spreaders are legendary for toughness, durability and ease of use. In fact, there are plenty of 30-year old Stoltzfus Spreaders still working hard in vineyards and orchards, spreading compost, lime, fertilizer, and other materials. Not many brands can say that.
What makes the Stoltzfus Orchard & Vineyard Spreaders such a pleasure to use? The narrow hopper accommodates your orchard or vineyard’s row spacing and helps protect your plantings. The low loading height facilitates filling with a skid steer and increases stability, while the wide conveyor and steep hopper side slopes handles compost and lime.

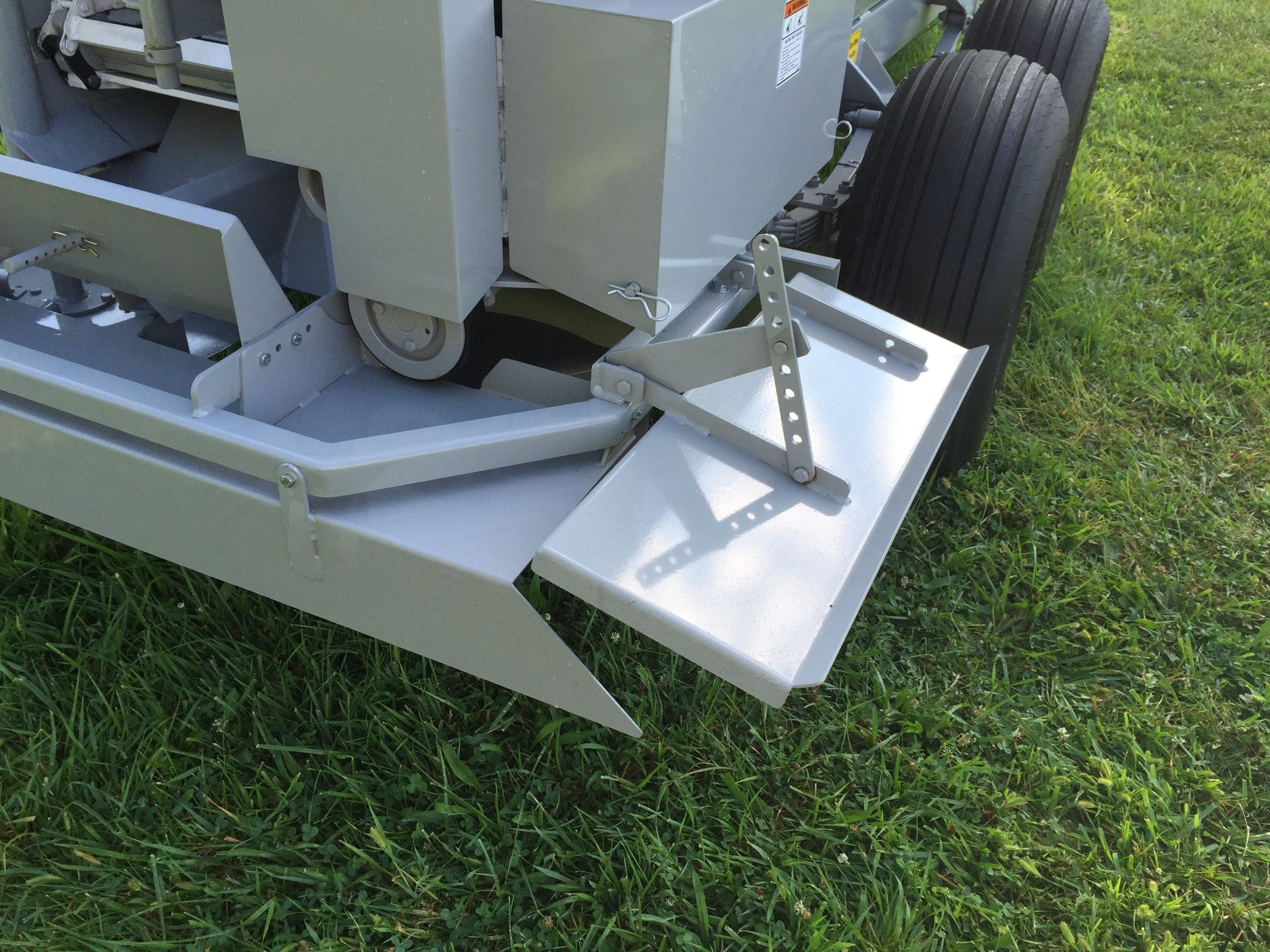

The precision banding deflectors and rear center limiter provide accurate material placement at the base of your trees or vines, rather than in the row. That means you can stop worrying about the job your spreader is doing and focus on getting the job done so you can move on to other things.
Whether you choose the 2- or 4-Ton model from the Wet Lime Spreader series, the 4-Ton ground drive model from the Redhawk series, the new Narrow Profile Banding Spreader (NPB-175) designed for high-density trellis orchard and vineyard applications, or a custom-sized Vineyard & Orchard Spreader—you’ll quickly come to rely on its ruggedness and capabilities.
Why settle for anything less than a Stoltzfus Vineyard & Orchard Spreader? It’s the machine that’s made to last.
Request A Spreader QuoteSTANDARD
- 2 and 4 capacities
- Banding Deflectors
- Rear Center Limiter
- Fertilizer kit for rates down to 125 lbs/acre
- Single Axle (2 ton) Walking-beam suspension (4 ton)
- PTO driven body chain
- Top driven spinners
- PTO driven (2 ton)
- Hydraulic Driven (4 ton)
- Fill-for-life heavy duty gearbox
- Unibody, fully welded design
- Structural steel frame
- Extra body braces
- 7 gauge steel pan
- 53-degree body sides
- 4" drop pan
- 24" slat style chain
- Telescoping chain tighteners
- Self-aligning idler shaft
- Carbon-steel construction
- Lights
OPTIONAL
- Limb Guards
- Self-contained PTO hydraulic drives
- Plug to tractor hydraulic body chain
- PTO driven spinners (4 ton)
- Shredder (breaks up large chunks before they hit the spinners)
- VRT Ready upgrade
- Spring suspension
- Flotation tires
- Tarps
- Cor-Ten® steel hopper
- 304 Stainless steel hopper
- Brakes
- Special wheel tracks
- Single axle
- 1000 RPM PTO
STANDARD
- 52" maximum width
- 47 cu ft capacity (2 ton lime)
- Banding Deflectors
- Rear Center Limiter
- Hinged Center Divider
- Fertilizer kit for rates down to 125 lbs/acre
- Single Axle (40” wheel track)
- Adjustable Tongue (36” length adjustment)
- Plug to tractor Hydraulic Body Chain
- Top driven Hydraulic Spinners
- Unibody, fully welded design
- Structural steel frame
- 7 gauge steel pan
- 4" drop pan
- 24" slat style chain
- Telescoping chain tighteners
- Self-aligning idler shaft
- Carbon-steel construction
- Lights
OPTIONAL
- Custom sizes
- Self-contained PTO hydraulic drives
- VRT Ready upgrade
- Flotation tires
- Tarps
- Cor-Ten® steel hopper
- 304 Stainless steel hopper
- Corner Pockets
Models | 20 | 40 |
---|---|---|
Max. load | 2 tons | 4 tons |
Hopper volume | 53 cu.ft. | 84 cu.ft. |
Hopper length | 78 in. | 120 in. |
Hopper width | 60 in. | 60 in. |
Hopper depth | 31 in. | 31 in. |
Overall length | 15 ft. | 18 ft. |
Overall width | 75 in. | 75 in. |
Overall height | 65 in. | 65 in. |
Axles | 1 | 2 |
Wheel track (center) | 64 in. | 64 in. |
Tires | 11L x 15, 8ply | 11L x 15, 8ply |
Weight | 2,090 lbs. | 2,780 lbs. |
Spread These Materials with a Stoltzfus Vineyard & Orchard Spreader
If flexibility and reliability matter to you, you’ll be happy to learn that you can spread all of these materials in your vineyard or orchard with a Stoltzfus Vineyard & Orchard Spreader:
- Compost, Fertilizer, Chicken litter
- Lime
- Gypsum, Marl
- Wood ash
- Sugar beet lime
- Lime-stabilized sludge
- Cement plant stack dust
- Pelletized materials
- Cover crop seeds (blended with fertilizer)
- Poultry manure, Mushroom soil
- Biochar
- Grape hulls
- Dewatered sludge
- Basalt, Sludge
- Diatomaceous earth
- Mulch, Wood shavings
- Organic materials
- Sand, Crushed shells
- Soil mixtures

Experience These Features and Their Benefits
When you invest in a Stoltzfus spreader, you’re making an investment that will last and pay you back many times over. You’ll no longer have to worry about bridged or wasted material, uneven flow, or premature wear. That’s all thanks to our spreaders’ unibody construction and these characteristics:
- Extreme-Duty Construction in Every Detail: That means you won’t have to worry about rough conditions—your new Orchard Spreader can handle it!
- Spreads Any Flowable Granular Material: Say goodbye to shopping for a spreader to apply one type of material. You can have a Vineyard Spreader that does it all.
- Compatible with Precision Farming Systems: Farmers rely on our spreaders working in harmony with their existing equipment. Confirm with our team today, and select VRT ready when ordering.
- Custom Features on Request: Need a custom hopper shape or a specific wheel track for your orchard spreader? We are more than happy to accommodate custom requests.
- PTO, Hydraulic, or Ground Drive Controls: Do you need constant PTO power or a system that adjusts flow based on ground speed? With Stoltzfus, the choice is yours!
That’s just a taste of how a Stoltzfus Orchard & Vineyard Spreader can transform the way you apply materials. You’ll also benefit from its narrow profile, low height, banding deflectors, rear center limiter—and The Stoltzfus Difference.
Did you have a different type of material in mind?
Get in touch with the Stoltzfus team to discuss your unique needs.
The Stoltzfus Orchard / Vineyard Spreader Difference
When you’re shopping for a new vineyard spreader or orchard spreader, what are you looking for?
Our customers demanded toughness, versatility, performance, and longevity—and they get them all.

Toughness
Engineered and built to withstand, Stoltzfus vineyard spreaders’ unibody construction gives them unmatched durability and reliability. With a body and frame that are fused seamlessly and support ribs that are welded along every inch, you’ll experience optimal strength.
TOUGHNESS is built into EVERY STOLTZFUS ORCHARD / VINEYARD SPREADER.

Versatility
You’ll enjoy the ultimate combination of sturdiness and accuracy with the Stoltzfus advanced delivery system. Engineered to apply a variety of materials, the orchard spreader assures smooth, surge-free material flow to its spinners.
VERSATILITY is built into EVERY STOLTZFUS VINEYARD / ORCHARD SPREADER.

Performance
If you want exceptional performance, you need clever design. Count on remarkable material capacity and flow—and never again worry about material bridging or inconsistent operation.
PERFORMANCE is built into EVERY STOLTZFUS ORCHARD / VINEYARD SPREADER.

Longevity
When spinner drives are shielded from material impact and chemical exposure, their lifespan is increased. Thanks to Stoltzfus innovation, you can count on prolonged life for your vineyard spreader’s components.
LONGEVITY is built into EVERY STOLTZFUS VINEYARD / ORCHARD SPREADER.
The Stoltzfus Difference is sure to change the way you see compost, lime and fertilizer spreading. It’s bound to become less of a chore and more of a pleasure.
When you reach out to our team, you’ll learn more about all the ways you can use Stoltzfus spreaders to make your job easier. Let’s talk today!

More Spreader Models from Stoltzfus Spreaders
The Orchard & Vineyard Spreader may be precisely what you need. But did you know that we also design and manufacture these types of spreaders?
- Wet Lime Spreaders
- Bulk Material Spreaders
- Ground Drive Spreaders
- Row Crop Spreaders
- Boom Drop Spreaders
- Custom-Designed Spreaders
