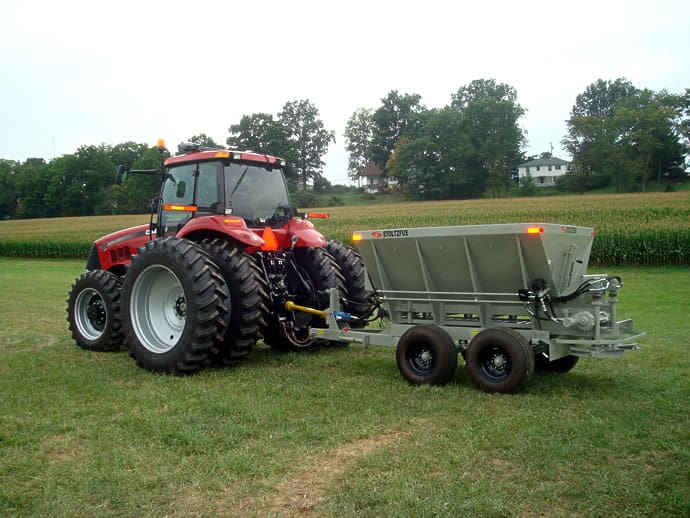

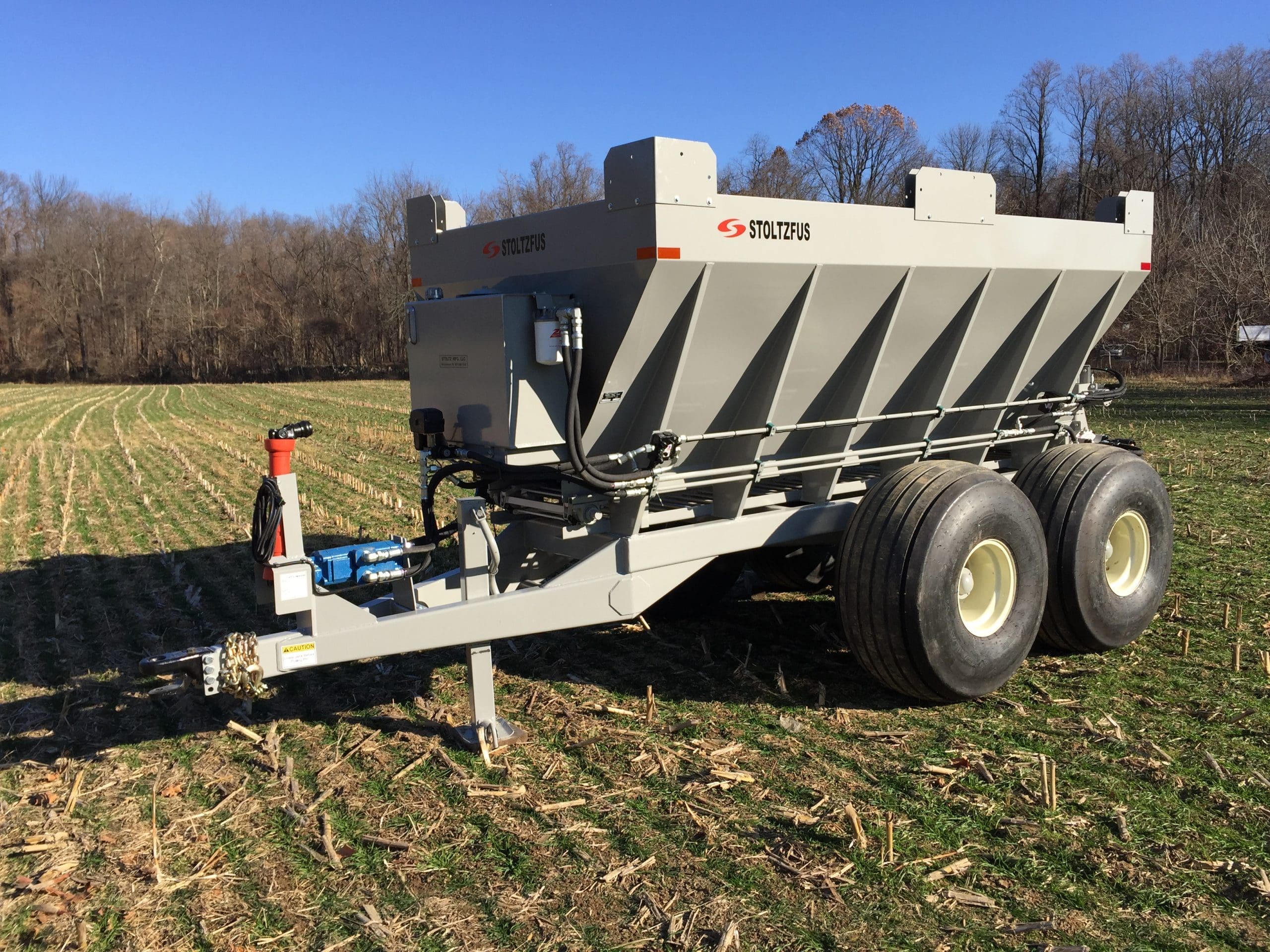

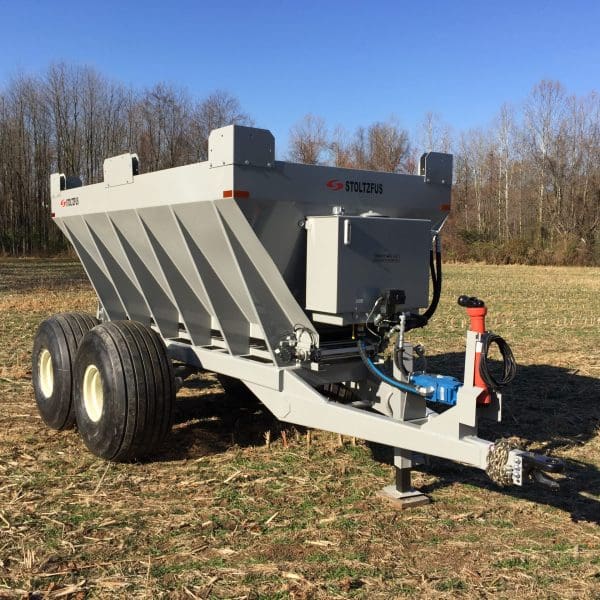

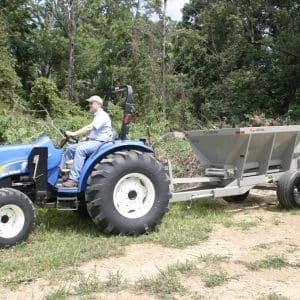

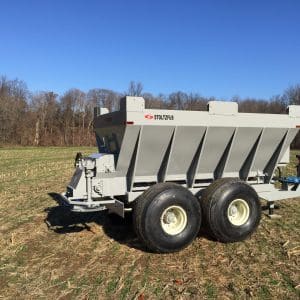

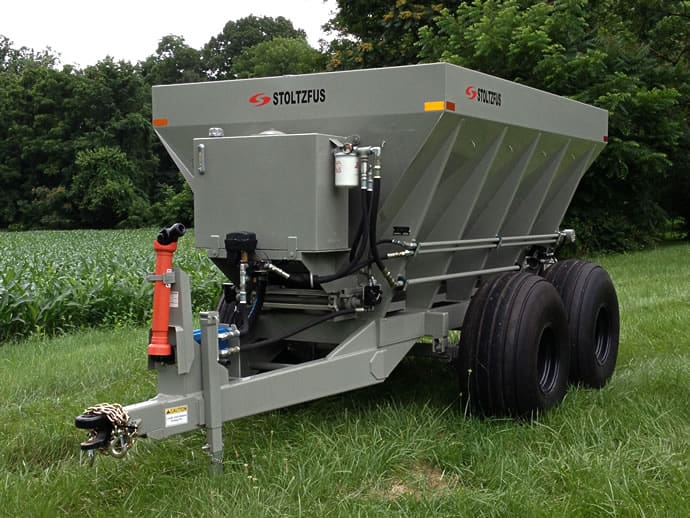

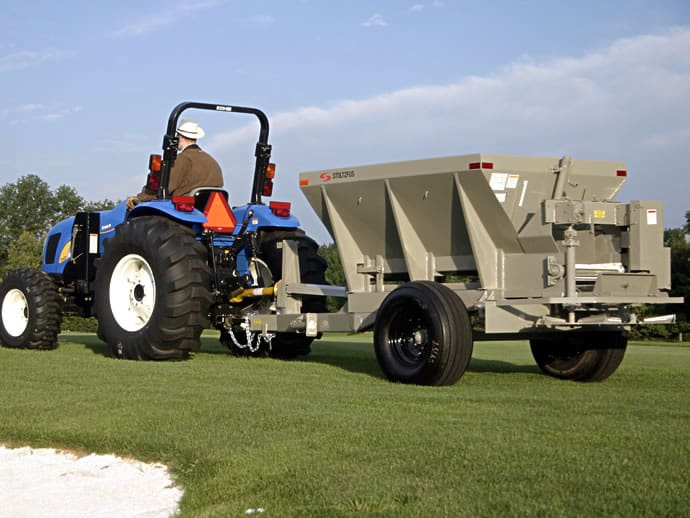

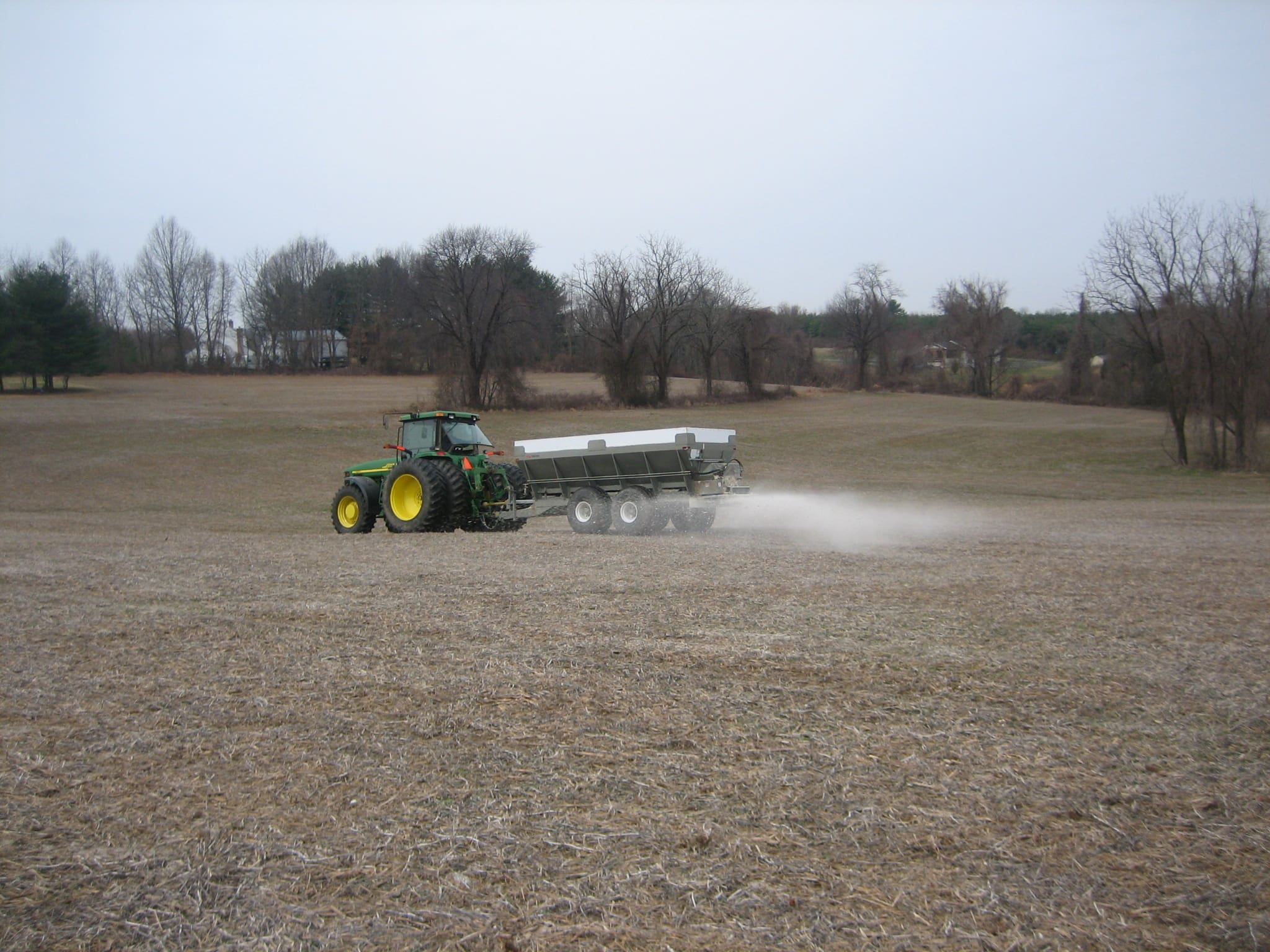

For farmers who are dissatisfied with light duty spreaders, the Wet Lime Spreader is a machine that is built for spreading wet or damp agricultural lime. Unlike a fertilizer spreader, the Wet Lime Spreader has a 24 inch wide conveyor and steep, 53 degree side slopes and a 4” drop pan to prevent material bridging in the hopper.
The Wet Lime Spreader (WLS) is designed to pay for itself based on the difference between custom applied lime and spreading it yourself. Farmers typically back-haul lime from the quarry and dump it in the corner of a field for spreading at a later date. The lime does not need to be kept dry, and can sit for months until needed. The lime can then be spread when conditions are right instead of waiting in line for the custom applicator to come around.
The WLS spreaders are available in all PTO mechanically driven, plug to tractor hydraulics and PTO over hydraulics, whichever best suits your needs. Spread rates are determined by ground speed and rear metering gate height, and a constant ground speed is required to maintain a consistent spread rate.
STANDARD
- 2, 4, 5, 8, 10 and 15 ton capacities

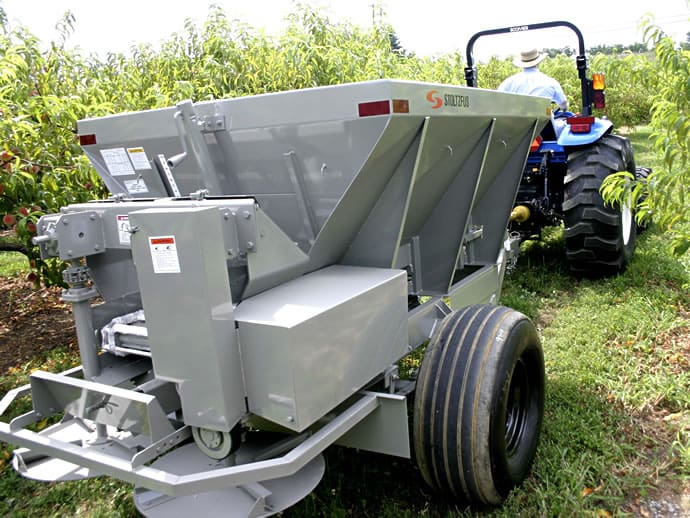

- Orchard/Vineyard configurations
- Fertilizer kit for rates down to 125 lbs/acre
- Walking-beam suspension
- PTO driven body chain (2-8 ton)
- Hydraulically driven body chain (10 and 15 ton)
- Top driven hydraulic spinners
- Fill-for-life heavy duty gearbox
- Unibody, fully welded design
- Structural steel frame
- Extra body braces
- 7 gauge steel pan
- 53-degree body sides
- 4" drop pan
- 24" slat style chain
- Telescoping chain tighteners
- Self-aligning idler shaft
- Carbon-steel construction
- Lights
OPTIONAL
- Self-contained PTO hydraulic drives
- Plug to tractor hydraulic body chain
- PTO driven spinners (2-8 tons)
- Shredder (breaks up large chunks before they hit the spinners)
- VRT Ready upgrade
- Spring suspension
- Flotation tires
- Tarps
- Cor-Ten® steel hopper
- 304 Stainless steel hopper
- Brakes
- Special wheel tracks

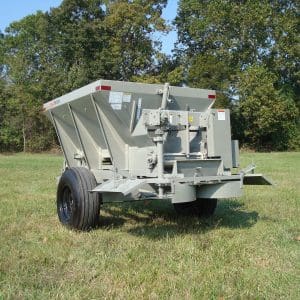

- Single axle
- 1000 RPM PTO
- GPS
MATERIALS SPREAD
- Stockpiled (wet or damp) Ag lime
- Gypsum
- Marl
- Fertilizer
- Compost
- Poultry manure
- Grape hulls
- Sand
- Crushed shells
- Cement plant stack dust
- Wood shavings
- Dirt
- Seeds (blended w/ fertilizer
Models | 20 | 40 | 50 | 50F | 80 | 100 | 150 |
---|---|---|---|---|---|---|---|
Max. load | 2 tons | 4 tons | 5 tons | 5 tons | 8 tons | 10 tons | 15 tons |
Hopper volume | 53 cu.ft. | 84 cu.ft. | 103 cu.ft. | 177 cu.ft. | 177 cu.ft. | 212 cu.ft. | 300 cu.ft. |
Hopper length | 78 in. | 120 in. | 96 in. | 120 in. | 120 in. | 143 in. | 192 in. |
Hopper width | 60 in. | 60 in. | 74 in. | 78 in | 78 in. | 78 in. | 88 in. |
Hopper depth | 31 in. | 31 in. | 41 in. | 45 in. | 50 in. | 50 in. | 57 in. |
Overall length | 15 ft. | 18 ft. | 16 ft. | 18 ft. | 18 ft. | 20 ft. | 24 ft. |
Overall width | 75 in. | 75 in. | 75 in. | 78 in. | 94 in. | 101 in. | 102 in. |
Overall height | 65 in. | 65 in. | 75 in. | 79 in. | 87 in. | 89 in. | 89 in. |
Axles | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
Wheel track (center) | 64 in. | 64 in. | 64 in. | 64 in. | 75 in. | 80 in. | 80 in. |
Tires | 11L x 15, 8ply | 11L x 15, 8ply | 11L x 15, 8ply | 11L x 15, 8ply | 19L x 16.1, 10ply | 21.5L x 16.1, 14ply | 21.5L x 16.1, 14ply |
Weight | 2,100 lbs. | 2,800 lbs. | 2,750 lbs. | 3,400 lbs. | 4,300 lbs. | 5,200 lbs. | 6,100 lbs. |
