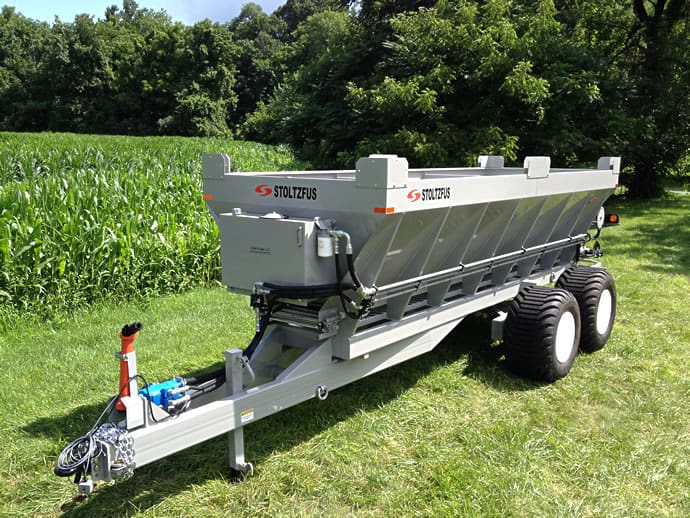

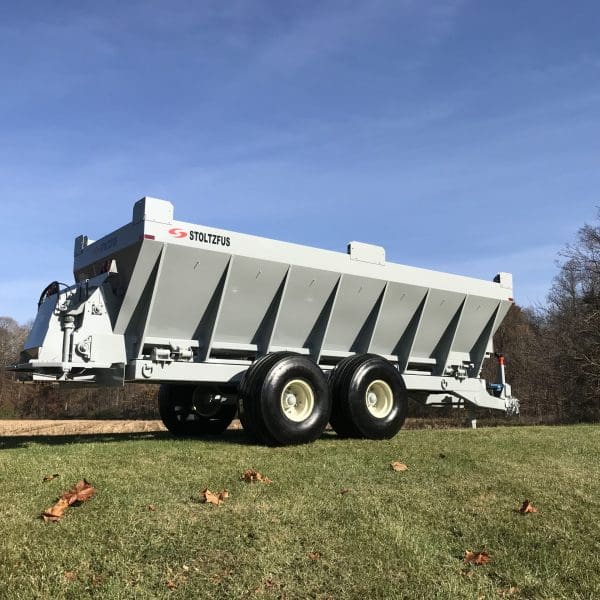

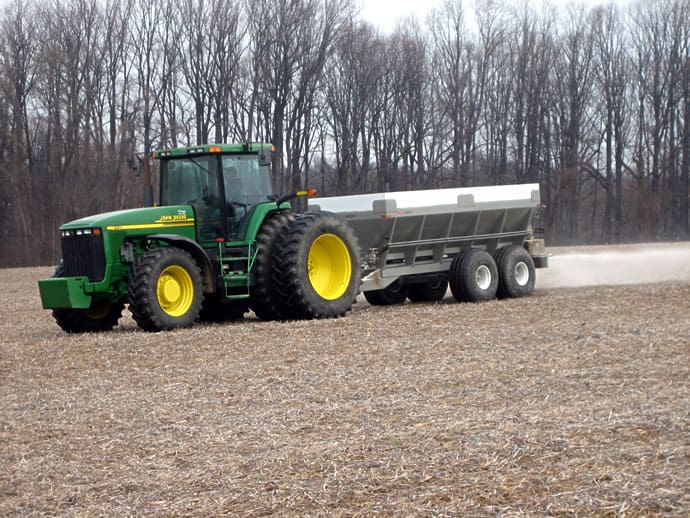

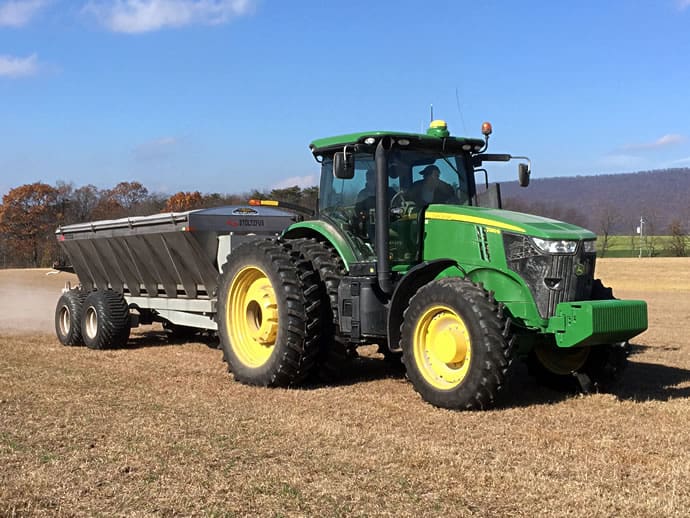

BMS spreaders are available in a multitude of power configuration from PTO mechanical (5 ton), plug-to-tractor hydraulics and full PTO over hydraulic systems. Whichever best suits your needs. Spread rates are determined by ground speed and gate height, and a constant ground speed is required to maintain a consistent spread rate. All BMS spreaders come standard with a heavy duty walking beam suspension. The large hoppers, 30 inch wide body chain and 16 inch high rear gate opening allow for high spread rates of light, bulky materials, while the rugged driveline is designed to handle lime.
STANDARD
- 5, 8, 15 and 20 ton capacities

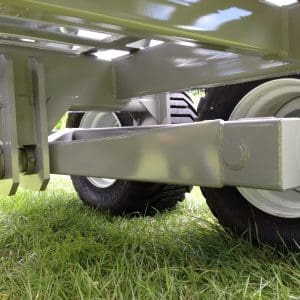

- Walking beam suspension

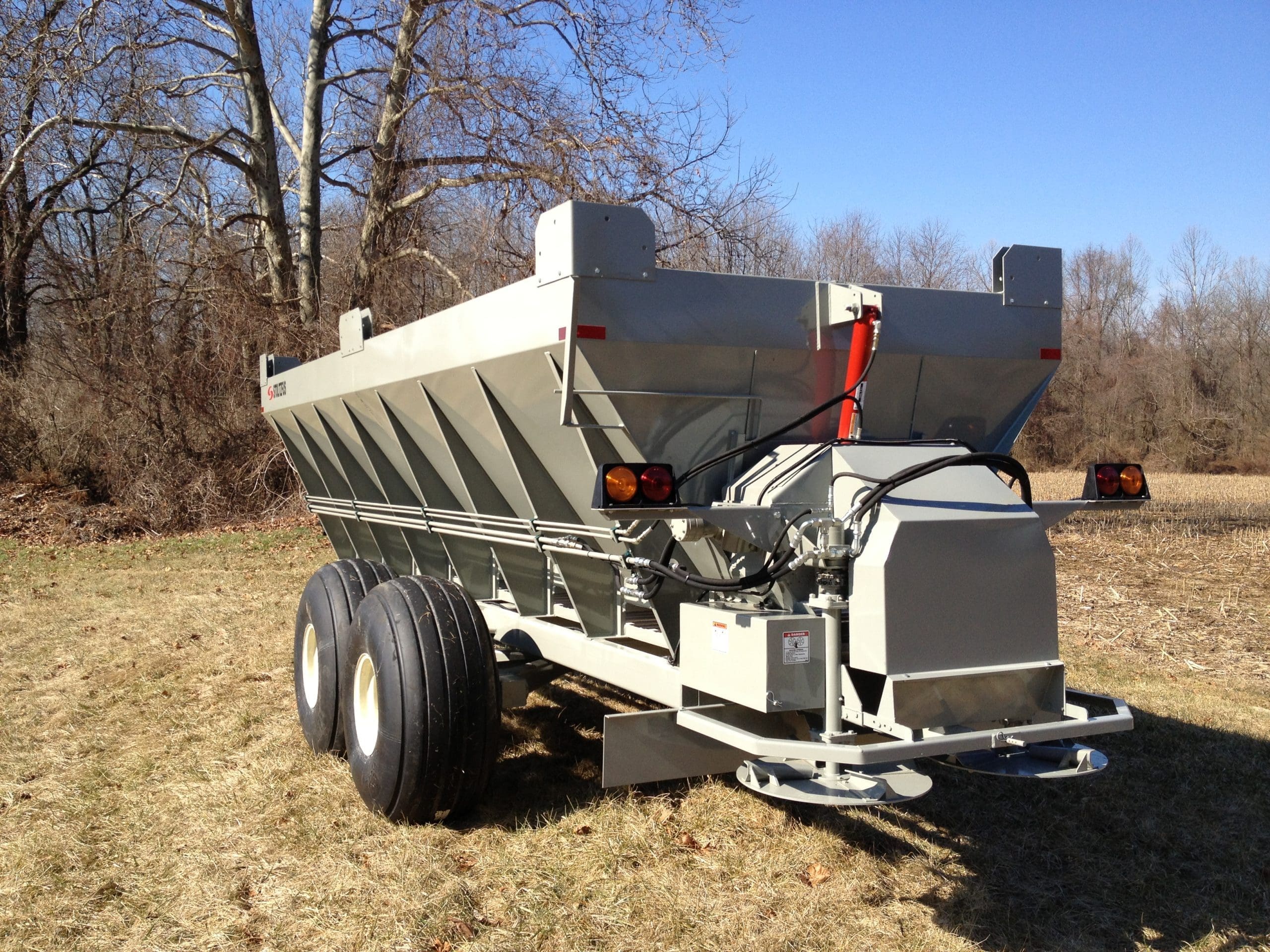

- Top driven hydraulic spinners

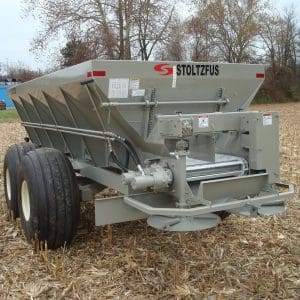

- PTO driven fill-for-life gearbox (5 ton)
- Hydraulic body chain (8-20 ton)
- Unibody, fully welded design
- Structural steel frame
- Extra body braces
- 7 gauge Cor-Ten® steel pan
- UHMW liner over pan
- Carbon-steel hopper
- 53-degree body sides
- 30" slat style chain
- 4” drop pan
- Telescoping chain tighteners
- Self-aligning idler shaft
- Lights
OPTIONAL
- Fertilizer kit for rates down to 200 lbs/acre

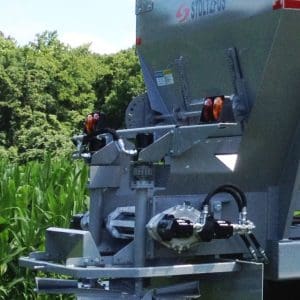

- Self-contained PTO hydraulic drives
- Hydraulic body chain (5 ton)
- Hydraulic rear gate (plug to tractor)
- VRT Ready upgrade

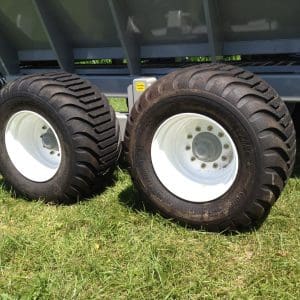

- Flotation tires
- Tarps
- Cor-Ten® steel hopper
- 304 Stainless steel hopper
- Brakes
- Agitator (prevents sludge from bridging in hopper)
- Shredder (breaks up large clumps before they hit the spinners)
- GPS
MATERIALS SPREAD
- Compost
- Poultry manure
- Stockpiled (wet or damp) Ag lime
- Gypsum
- Marl
- Sludge
- Mushroom soil
- Fertilizer
- Sand
- Crushed shells
- Cement plant stack dust
- Wood shavings

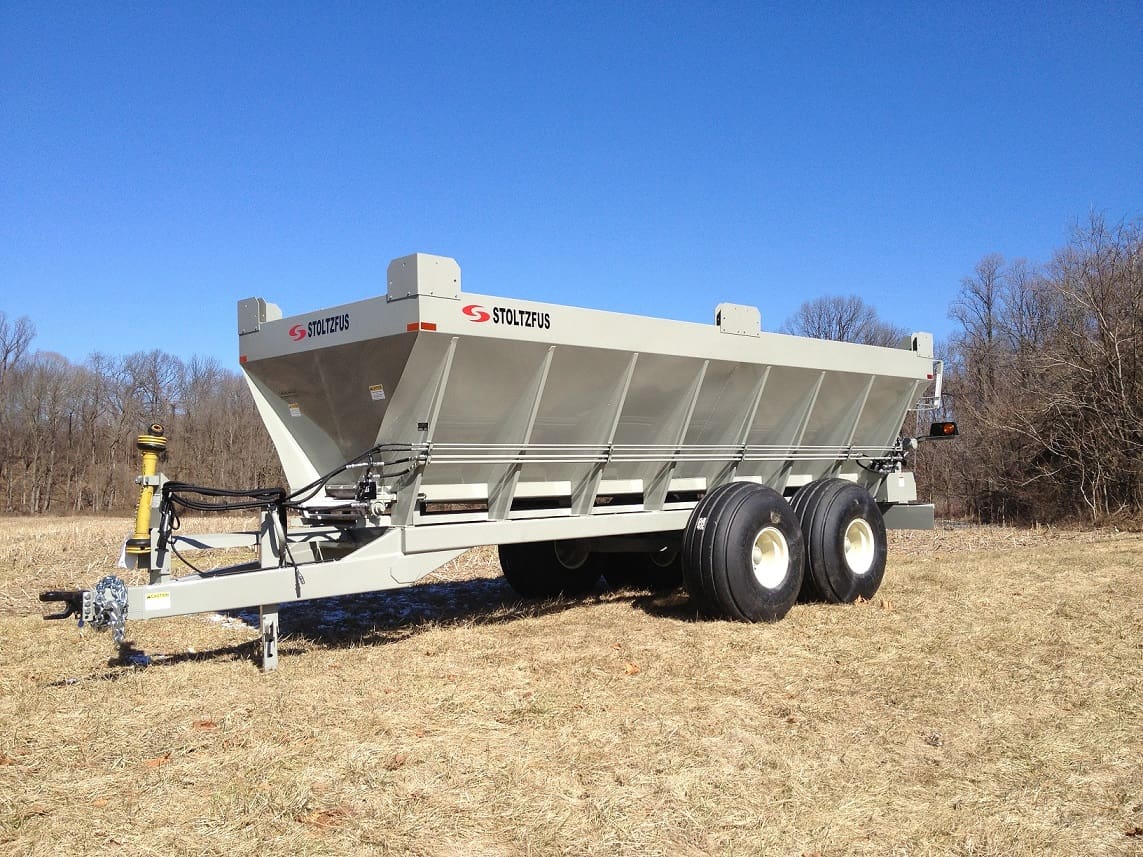

Models | 5010 | 8016 | 1516 | 1520 | 2020 | 2020XL |
---|---|---|---|---|---|---|
Max. load | 5 tons | 10 tons | 15 tons | 15 tons | 20 tons | 20 tons |
Hopper volume | 137 cu.ft. | 225 cu.ft | 225 cu.ft. | 400 cu.ft | 400 cu.ft | 700 cu.ft |
Hopper length | 10 ft. | 16 ft. | 16 ft. | 20 ft. | 20 ft. | 20 ft. |
Hopper width | 74 in. | 74 in. | 74 in. | 84 in. | 84 in. | 102 in. |
Hopper depth | 37 in. | 37 in. | 37 in. | 49 in. | 49 in. | 70 in. |
Overall length | 18 ft. | 24 ft. | 24 ft. | 28 ft. | 30 ft. | 30 ft. |
Overall width | 79 in. | 94 in. | 94 in. | 102 in. | 114 in. | 114 in. |
Overall height | 71 in. | 78 in. | 78 in. | 89 in. | 95 in. | 117 in. |
Wheel track (center) | 68 in. | 80 in. | 80 in. | 80 in. | 90 in. | 90 in. |
Tires | 11L x 15, 8ply | 19L x 16.1, 10ply | 21.5L x 16.1, 14ply | 21.5L x 16.1, 14ply | 600/50-22.5 | 600/50-22.5 |
Weight | 3,700 lbs. | 5,000 lbs. | 5,700 lbs. | 6,700 lbs. | 9,400 lbs. | 11,200 lbs. |
