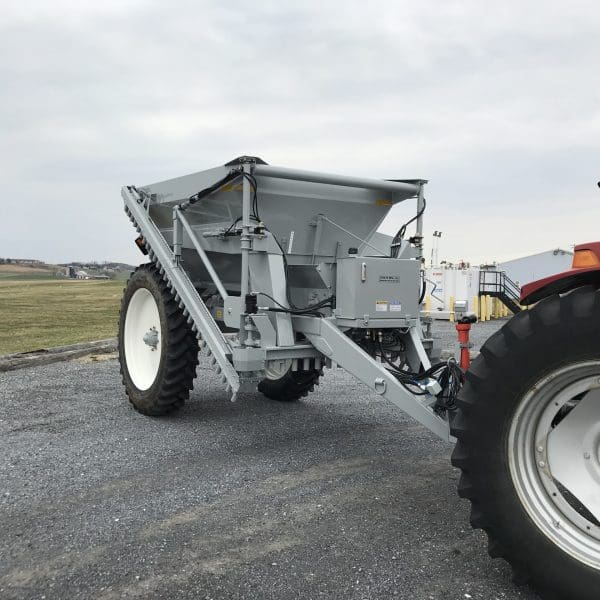

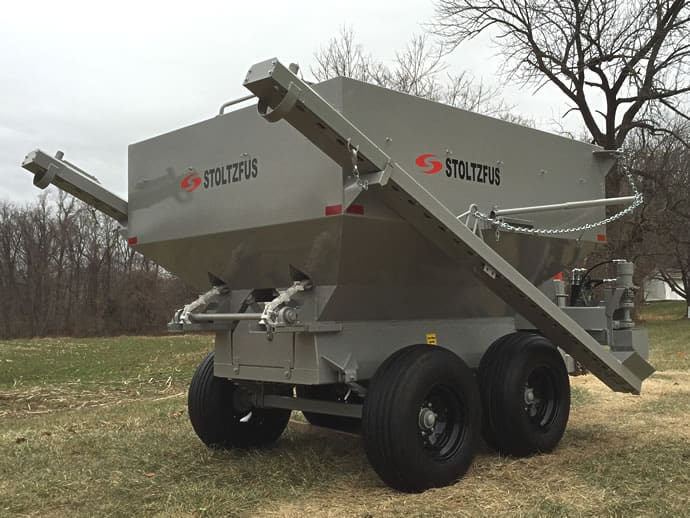

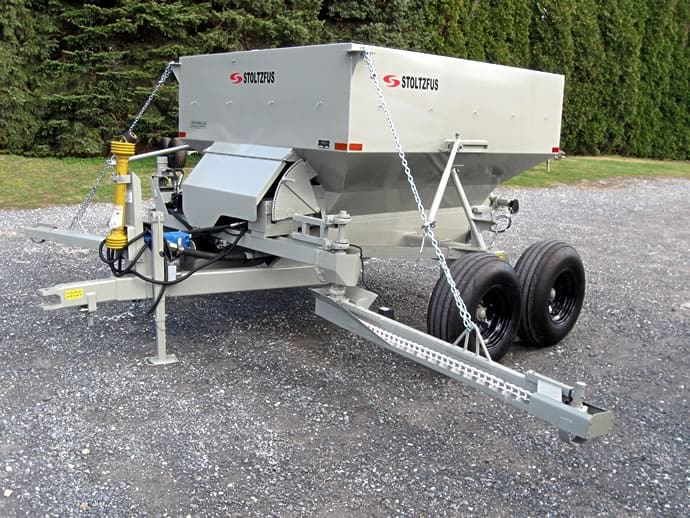

The original boom style drop spreader creates a level spread pattern right to the edge of your field with no overlap required. Unsurpassed accuracy for dry, flowable or dusty materials like dry pulverized lime and crushed stone fertilizers. This design reduces dust and mid-air separation of light and heavy particles.

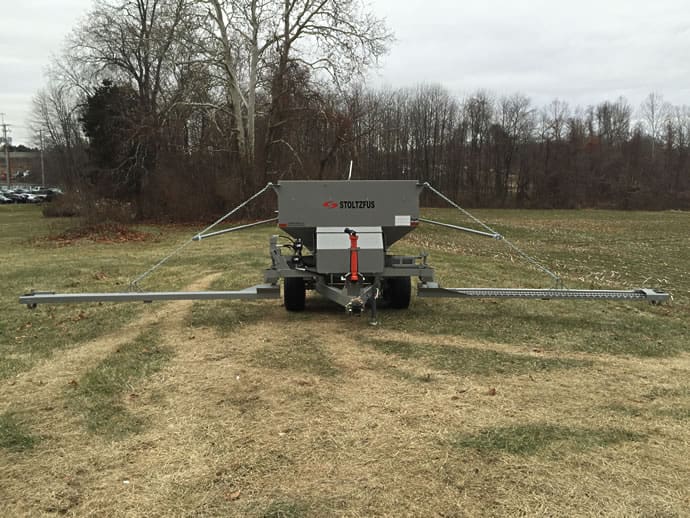

Featuring a self-contained PTO hydraulic drive system, the boom spreader has been redesigned for simplicity and reduced moving parts. The spreader features a 30 foot wide spread pattern using a conveyor-style boom. A level spread pattern is achieved because the conveyor boom returns excess material rather than splashing it out the end.
STANDARD
- 5 and 8 ton capacities

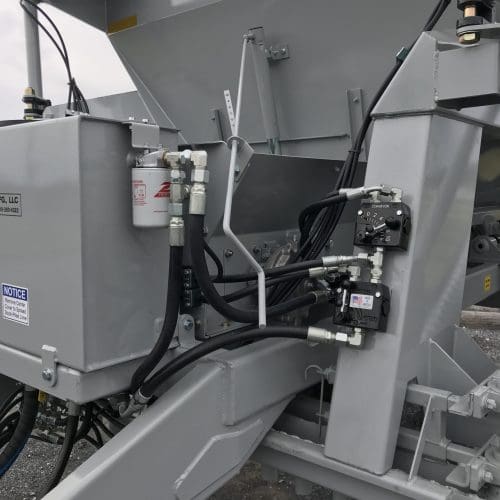

- Self-contained PTO hydraulic drives

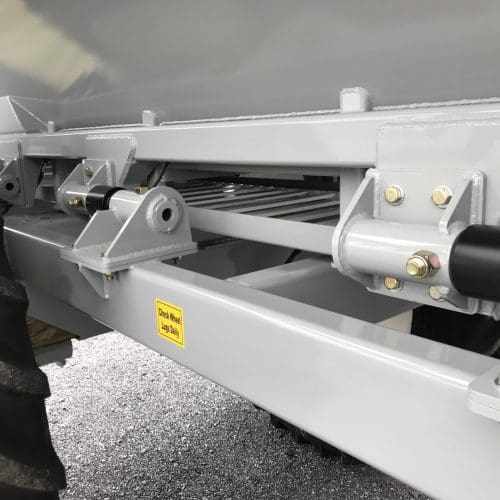

- Spring suspension
- Unibody, fully welded design
- 8 ft stainless steel center boom
- 2 x 11 ft folding sower booms
- Stainless slide adjusters
- Carbon-steel construction
OPTIONAL
- Flotation tires
- Lights
- Tarps
- Cor-Ten® steel hopper
- 304 Stainless steel hopper
- 18 ft fixed center boom
- Brakes
- Special wheel tracks
- Single axle

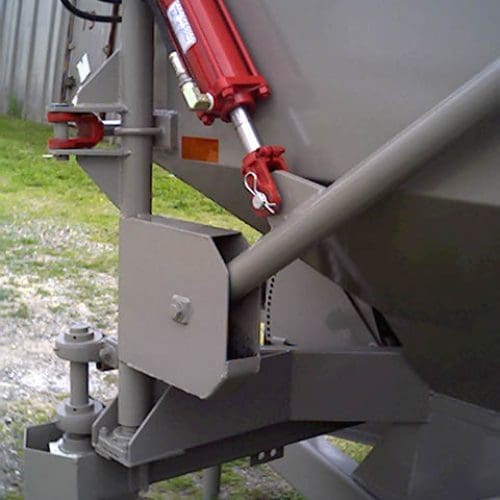

- Hydraulic boom lifters
- 8 ton upgrade
- GPS
MATERIALS SPREAD
- Fertilizer
- Dry pulverized lime
- Dusty materials like crushed rock phosphate
- Fly ash
- Bentonite
- Cement
| Model | WC-5 Ton | WC-8 Ton |
|---|---|---|
| Max load | 5 tons | 8 tons |
| Hopper volume | 155 cu.ft. | 242 cu.ft |
| Hopper length | 96 in. | 120 in. |
| Hopper width | 78 in. | 93 in. |
| Hopper depth | 47 in. | 43.5 in. |
| Overall length | 15 ft. | 20 ft. |
| Overall width (folded) | 95 in. | 113 in. |
| Overall height | 77 in. | 83 in. |
| Axles | 2 | 2 |
| Wheel track (center) | 64 in. | 75 in. |
| Tires | 11L x 15, 8 ply | 19L x 16.1, 10 ply |
| Weight | 2,750 lbs. | 3,250 lbs. |
