Ground Drive Spreaders

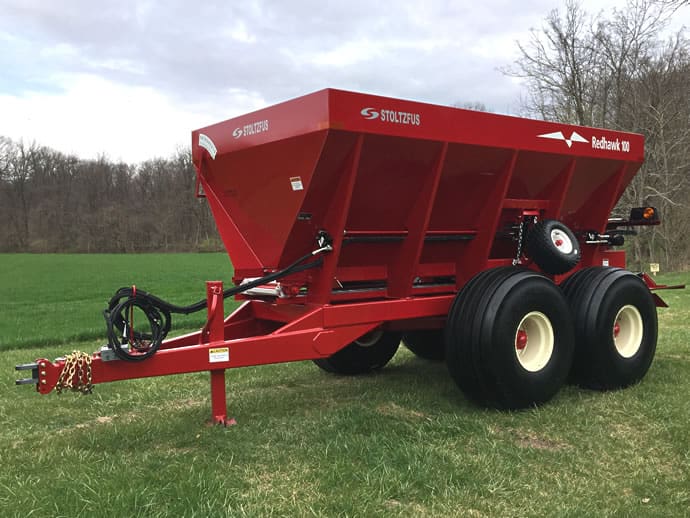

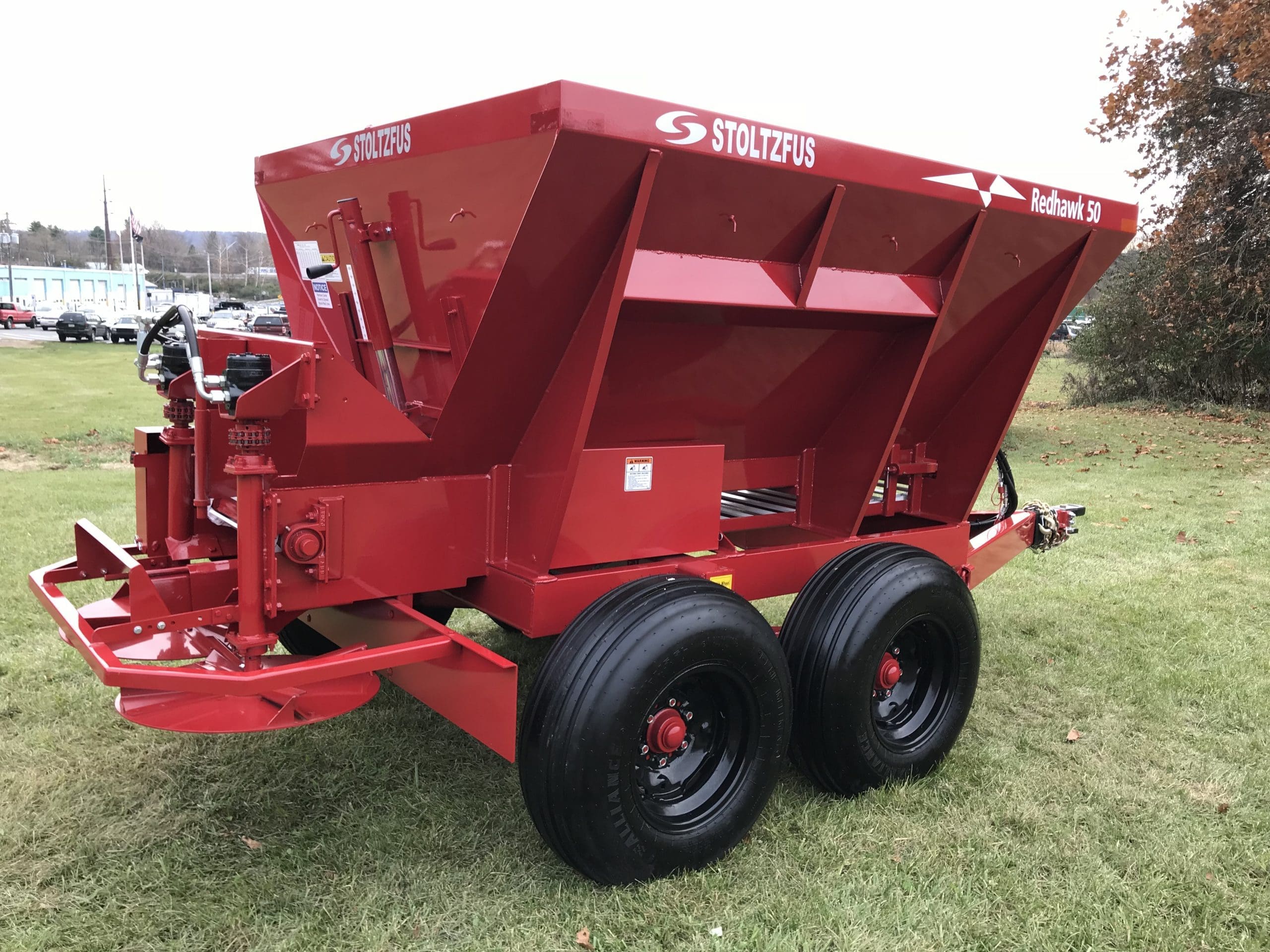

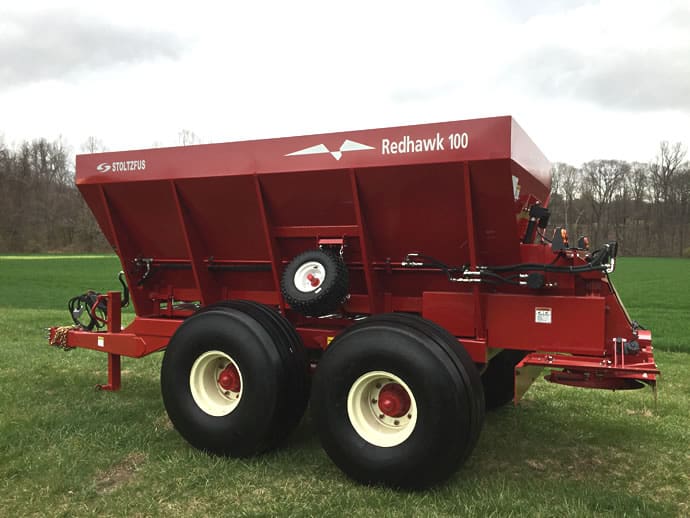

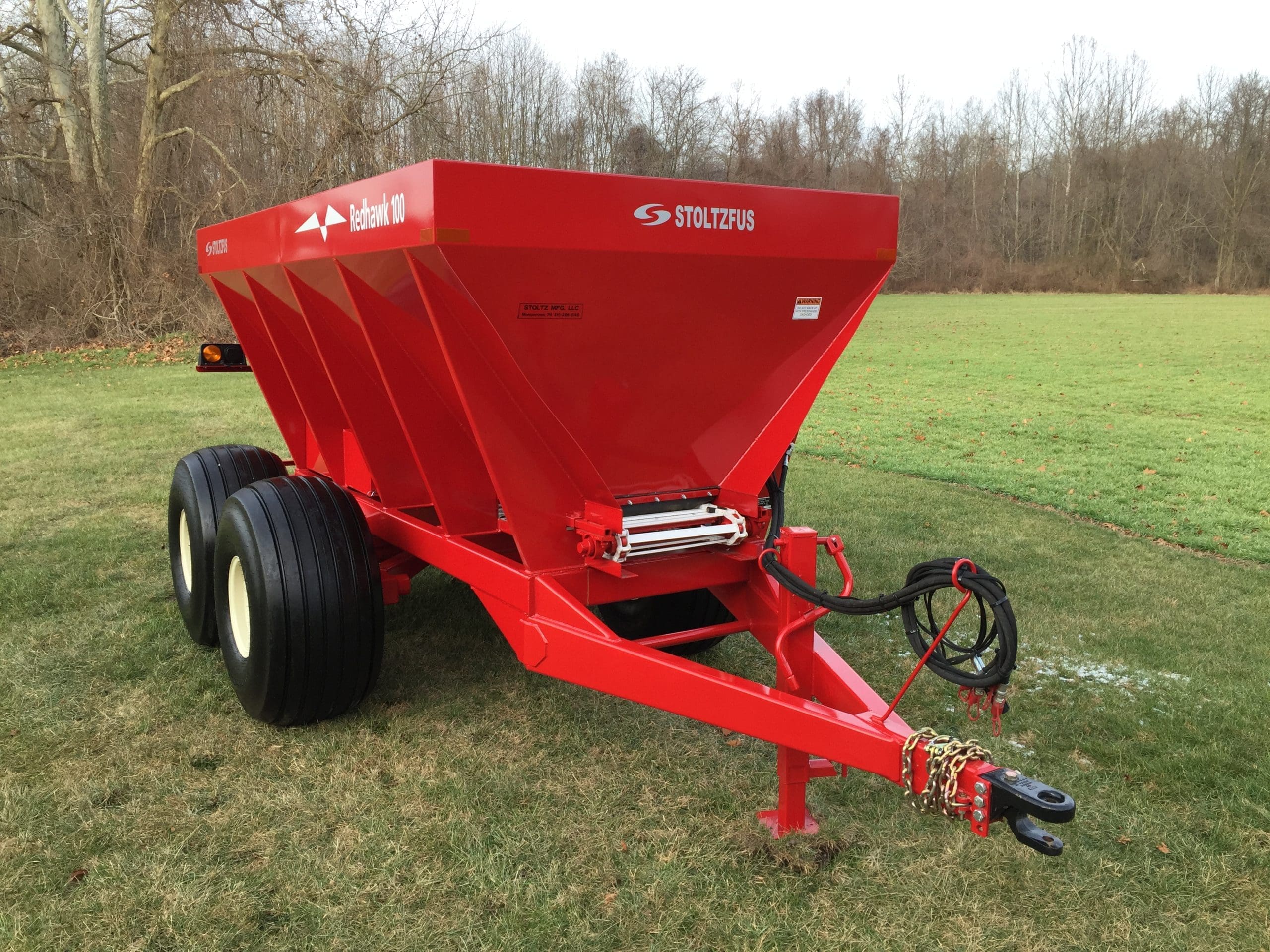

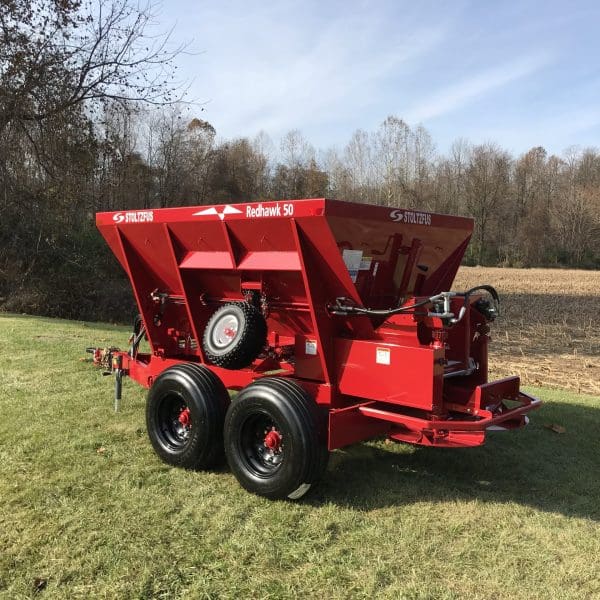

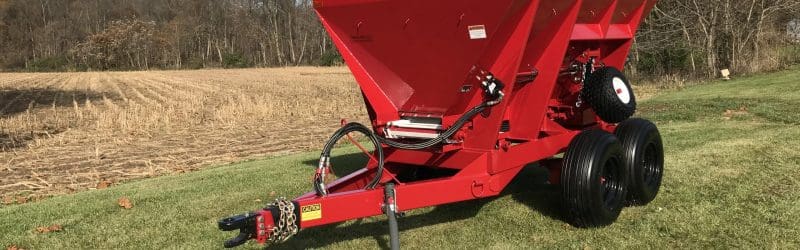

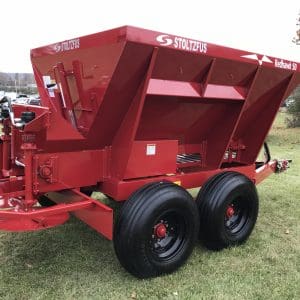

Designed for farmers who don’t want to own separate spreaders for lime and fertilizer, the Redhawk spreader is a combination spreader that can handle most materials. Unlike dedicated spreaders, the Redhawk units are rugged enough for lime, precise enough for fertilizer and versatile enough for litter and compost.

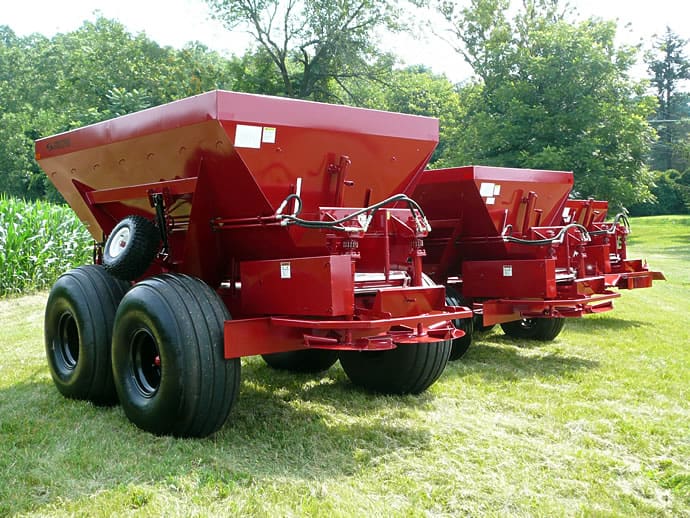

The Redhawk ground drive lime and fertilizer spreader features a double-contact press wheel that provides enough power to break free a packed load of lime, while still providing the ground drive precision you expect in a fertilizer spreader.

The body chain (conveyor) is driven by a press wheel that contacts both ground wheels on the walking beam suspension, providing extra traction. The press wheel is operated hydraulically from the tractor to start and stop the spreader – no ropes to pull! The spinners are powered by tractor hydraulics or PTO mechanically driven. Spread rates are determined by the gate height, and the ground drive mechanism ensures a constant spread rate regardless of travel speed.

STANDARD

  • 4, 5, 8 and 10 ton capacities
  • Orchard/Vineyard configurations
  • Ground driven body chain
  • Cor-Ten® steel hopper
  • Fertilizer kit for rates down to 125 lbs/acre
  • Walking-beam suspension
  • Hinged center divider (one sided spreading)
  • Top-driven hydraulic spinners
  • Unibody, fully welded design
  • Extra body braces
  • UHMW Plastic floor
  • 53-degree body sides
  • 4" drop pan
  • 24" slat style chain
  • Telescoping chain tighteners
  • Self-aligning idler shaft

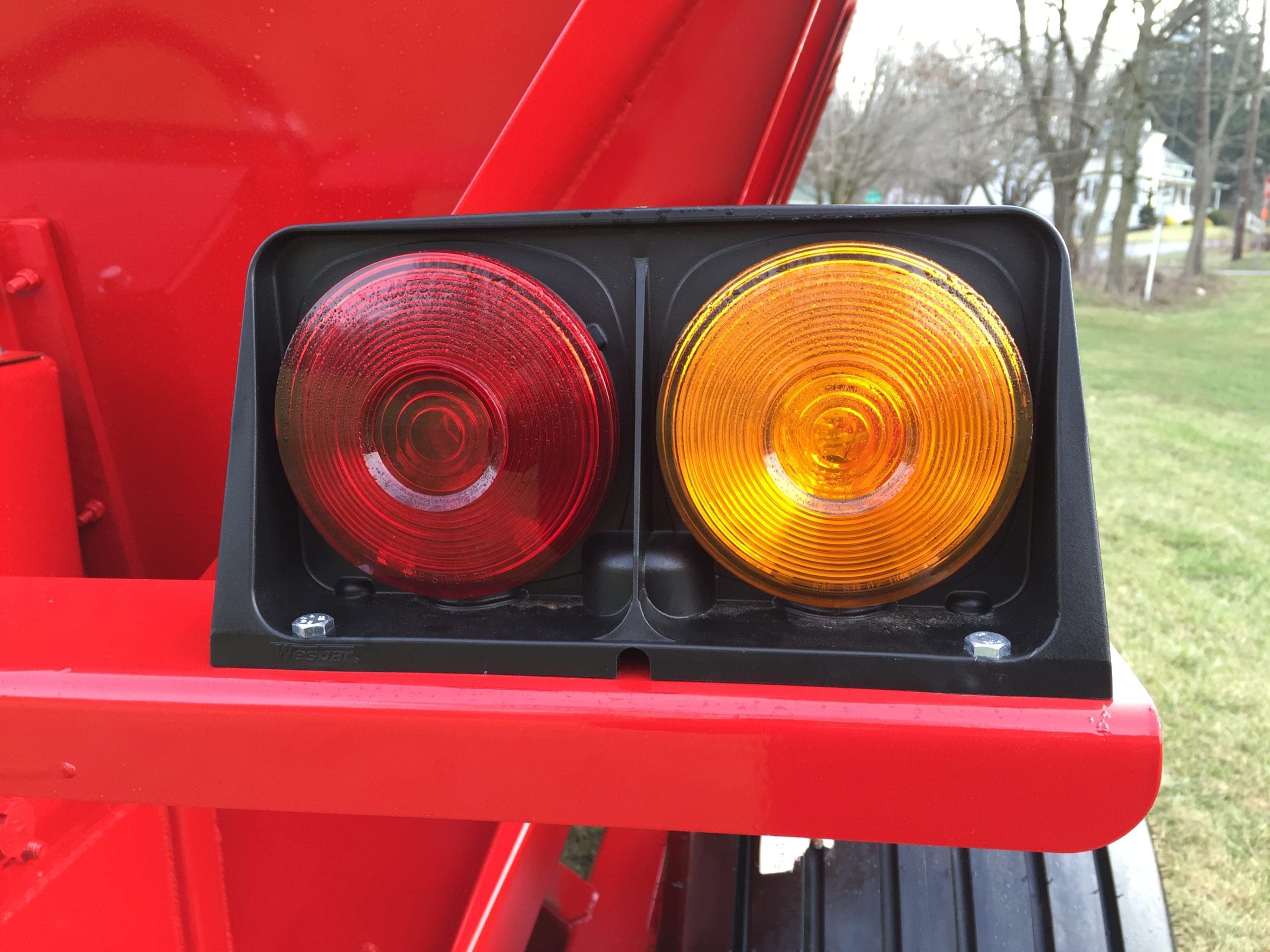

  • Lights

OPTIONAL

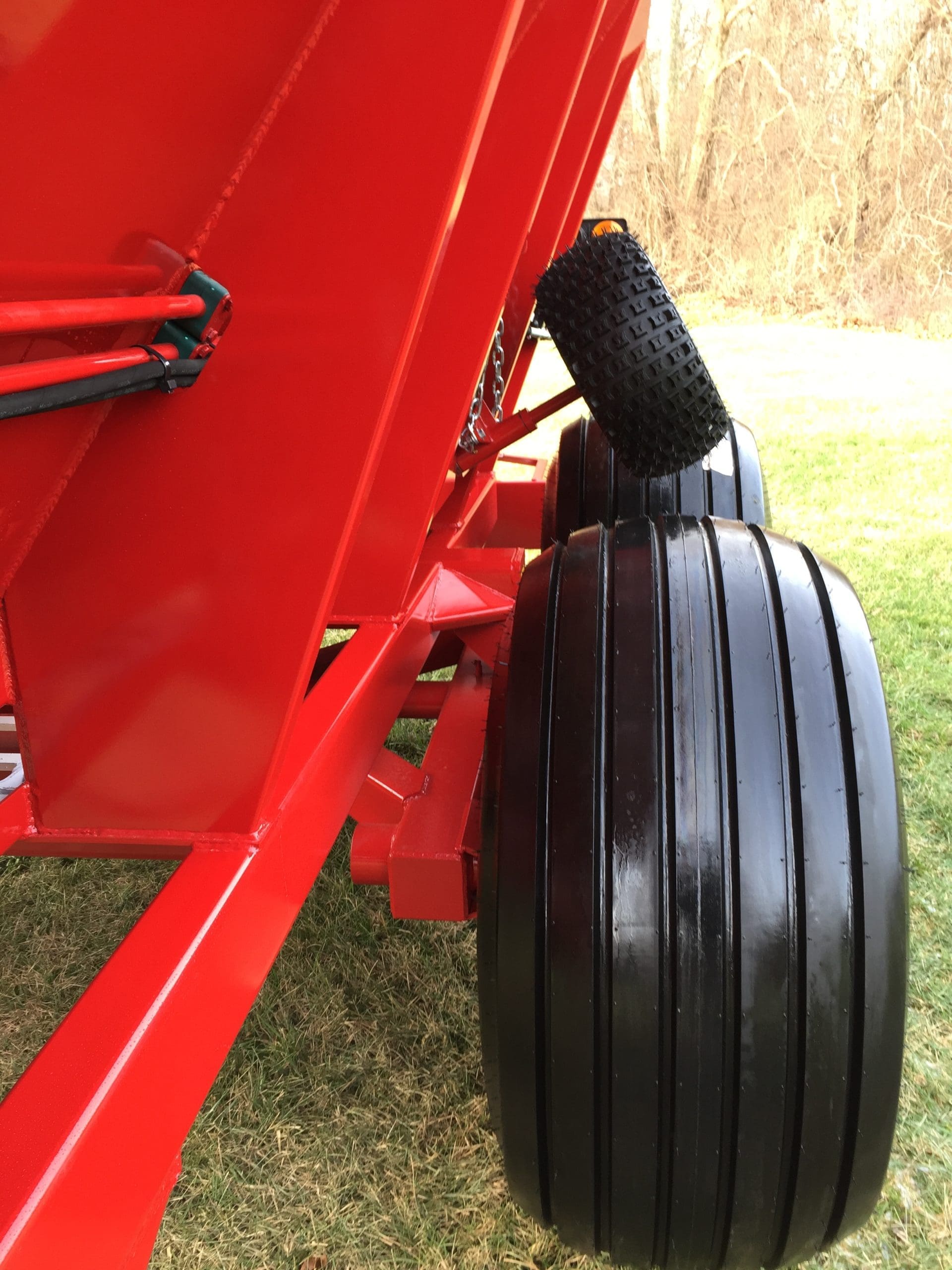

  • Flotation tires
  • PTO spinners
  • Shredder (breaks up large chunks before they hit the spinners)
  • Tarps
  • 304 Stainless steel hopper
  • Brakes
  • Special wheel tracks

MATERIALS SPREAD

  • Stockpiled (wet or damp) Ag lime
  • Gypsum
  • Marl
  • Fertilizer
  • Compost
  • Poultry manure
  • Grape hulls
  • Sand
  • Crushed shells
  • Cement plant stack dust
  • Wood shavings
  • Dirt
  • Seeds (blended w/ fertilizer

Models CU 40 CU 50 CU 50F CU 80 CU 100
Max. load 4 tons 5 tons 5 tons 8 tons 10 tons
Hopper volume 85 cu.ft. 108 cu.ft. 177 cu.ft. 177 cu.ft. 212 cu.ft.
Hopper length 10 ft. 8 ft. 10 ft. 10 ft. 12 ft.
Hopper width 60 in. 74 in. 78 in. 78 in. 78 in.
Hopper depth 31 in. 42 in. 45 in. 45 in. 50 in.
Overall length 18 ft. 16 ft. 18 ft. 18 ft. - 2 in. 20 ft.
Overall width 81 in 81 in. 81 in. 99 in. 102 in.
Overall height 65 in. 71 in. 79 in. 87 in. 89 in.
Wheel track (center) 70 in. 70 in. 64 in. 80 in. 80 in.
Tires 11L x 15, 8 ply 11L x 15, 8 ply 11L x 15, 8 ply 19L x 16.1, 10 ply 19L x 16.1, 10 ply
Weight 2,750 lbs. 2,600 lbs. 3,370 lbs. 3,950 lbs. 5,200 lbs.
